3. Frame the Walls
Construct the wall frames flat on the ground for precision and safety. Use pressure-treated lumber for durability against outdoor elements. Once assembled, position the frames upright and secure them to the base structure with galvanized screws.
Insert acoustic insulation panels, such as mineral wool or fiberglass batts rated for sound transmission class (STC) 50 or higher, into each frame cavity. These materials effectively trap sound waves within the structure. Attach plywood sheathing, at least 5/8-inch thick, to both sides of the frames using construction adhesive and screws spaced every 6 inches along the edges.
Apply a high-quality acoustic caulk to every seam and joint to eliminate potential sound pathways. For optimal performance, offset the seams between the interior and exterior plywood layers by at least 4 inches. This staggered approach minimizes direct sound transmission through aligned gaps.
4. Add the Roof
Secure crossbeams across the top of the wall frames using lag bolts for a sturdy connection. Select beams that span the full width of the pod to distribute weight evenly. Cover the beams with plywood sheets, ensuring overlaps at joints to create a seamless surface.
Seal all edges and seams with a waterproof, flexible sealant designed for exterior use. This step prevents water infiltration that could compromise the pod's integrity over time. Verify the roof pitch slopes at least 1/4 inch per foot to facilitate drainage.
To incorporate natural light while preserving acoustic benefits, install a compact skylight with low-emissivity glass or a panel of UV-resistant polycarbonate. Position it centrally and frame it with additional insulation around the edges. These features enhance usability without significantly increasing noise entry.
5. Install Windows or Open Panels
Incorporate a fixed or operable window to balance ventilation and privacy needs. Opt for double-pane windows with an argon gas fill and laminated glass, which provide an STC rating of 35 or better. Measure openings precisely to ensure a snug fit within the wall frames.
Secure the window frame with screws and apply acoustic caulk along all perimeter joints. Even minor gaps, such as a half-inch opening, can allow substantial noise penetration, so inspect thoroughly. For added control, consider tinted or frosted glass to maintain seclusion.
If preferring open panels for airflow, use removable screens with fine mesh. These allow breeze circulation while blocking insects, but close them during high-noise periods to maximize sound isolation.
6. Finish Interiors
Line the interior walls with acoustic fabric or felt panels to absorb internal echoes and reverberations. Stretch the material taut over wooden battens for a professional appearance. These coverings reduce sound bounce, creating a more intimate acoustic environment.
Protect exposed wood with exterior-grade paint or stain that resists UV damage and moisture. Apply two coats for full coverage, allowing drying time between applications as specified by the manufacturer. Integrate lighting fixtures, such as LED strips or recessed cans, and electrical outlets early in the process.
Seal any access panels for wiring or maintenance with magnetic latches and gaskets. This setup permits easy inspections while upholding the pod's soundproofing qualities.
7. Secure the Door
Select a solid-core door constructed from dense materials like hardwood or composite to achieve superior noise reduction. Ensure the door thickness measures at least 1-3/4 inches for effective sound blocking. Hang it on heavy-duty hinges rated for outdoor use.
Install compressible weatherstripping along the jambs and a brush or rubber sweep at the bottom threshold. These components create an airtight barrier against external sounds. Adjust the strike plate if necessary to guarantee proper alignment.
Conduct multiple tests by closing the door firmly and listening for air leaks or rattles. Lubricate hinges periodically to ensure smooth operation without compromising the seal.
Troubleshooting
Problem: Echo or hollow sound inside the pod
Internal reflections from hard surfaces amplify noise. Install additional fabric panels on ceilings or add a removable rug to the floor. Select materials with a noise reduction coefficient (NRC) of 0.70 or higher for maximum absorption.
Problem: Heat buildup during warm weather
Enclosed spaces trap heat, reducing comfort. Integrate a low-profile vent fan powered by solar cells for passive operation, or leave a 1-inch air gap along the roof eaves. Externally, apply reflective roofing material or train climbing vines to provide natural shading.
Problem: Water leaks around seams or joints
Moisture can degrade seals over time. Routinely examine caulked areas and reapply acoustic-grade silicone sealant where cracks appear. Confirm the roof maintains adequate pitch to channel water away from walls and foundation.
Problem: Vibration noise from nearby traffic or urban activity
Transmitted vibrations bypass airborne sound barriers. Place neoprene rubber pads or mats, at least 1/4-inch thick, beneath the floor joists. This isolation layer can reduce vibration transfer by up to 50 percent, enhancing overall quietness.
Maintenance
Perform inspections every three months to identify early signs of wear, such as moisture stains, loosened fasteners, or deteriorated seals. Tighten screws and replace any compromised components promptly to preserve structural integrity.
Before the onset of winter, reseal all joints with flexible silicone caulk to withstand freeze-thaw cycles. Every two years, sand and refinish exterior wood surfaces with a marine-grade stain or paint to guard against warping and rot.
Maintain interior cleanliness by vacuuming fabrics weekly and spot-cleaning with a solution of mild soap and water. Monitor acoustic panels for dampness; replace them immediately if mold develops to avoid health risks. Equip vents with removable insect screens to prevent debris accumulation.
With consistent attention, an acoustic pod endures beyond ten years, requiring only occasional upgrades like new weatherstripping or fabric refreshes.
Smart Storage Integration
Acoustic pods serve multiple purposes, including storage or a compact workspace. Design built-in features that prioritize airflow and accessibility to avoid clutter buildup.
Consider these practical options:
- A built-in bench with lift-up seating for storing cushions, blankets, or gardening tools.
- Sturdy wall-mounted hooks to hang folding furniture, audio equipment, or accessories.
- Adjustable floating shelves for displaying books, potted herbs, or decorative items.
- Hinged panels that swing open to connect with the deck, facilitating ventilation and easy access.
Limit the weight of stored items to 50 pounds per linear foot of wall to prevent frame strain. Choose modular, lightweight solutions that simplify rearrangement and cleaning, ensuring the space remains balanced and functional.
Key Takeaways

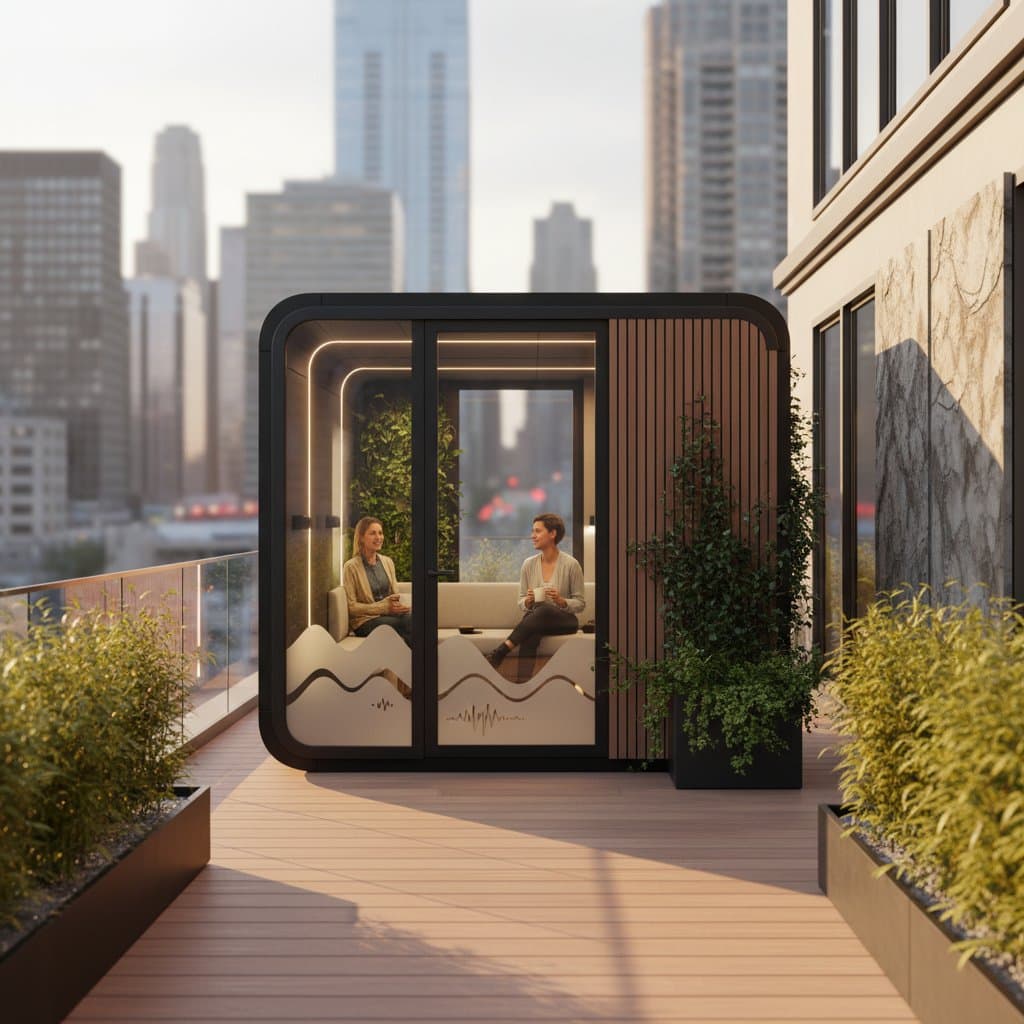

Acoustic pods deliver tranquility and seclusion to urban decks with minimal disruption to existing layouts. Combining absorptive elements, such as specialized insulation, with reflective barriers like layered plywood achieves noise reduction up to 30 decibels.
Precise sealing techniques, integrated ventilation systems, and routine maintenance ensure long-term reliability and occupant safety. Explore economical approaches by repurposing reclaimed wood or opting for a compact pod design.
Regular seasonal evaluations mitigate risks from moisture accumulation or excessive heat. Ultimately, these structures foster a personalized retreat that safeguards concentration and serenity amid city bustle.
Making It Happen
Begin construction with a pilot section, like a 4-foot-wide wall panel fitted with acoustic foam and a simple roof overlay. Measure ambient noise levels before and after installation using a smartphone decibel meter app to quantify improvements.
Upon verifying the desired reduction, proceed to expand the enclosure around your chosen deck area. Document each phase with photos to track progress and refine techniques for future projects. This methodical approach builds confidence and yields a customized, effective solution.
